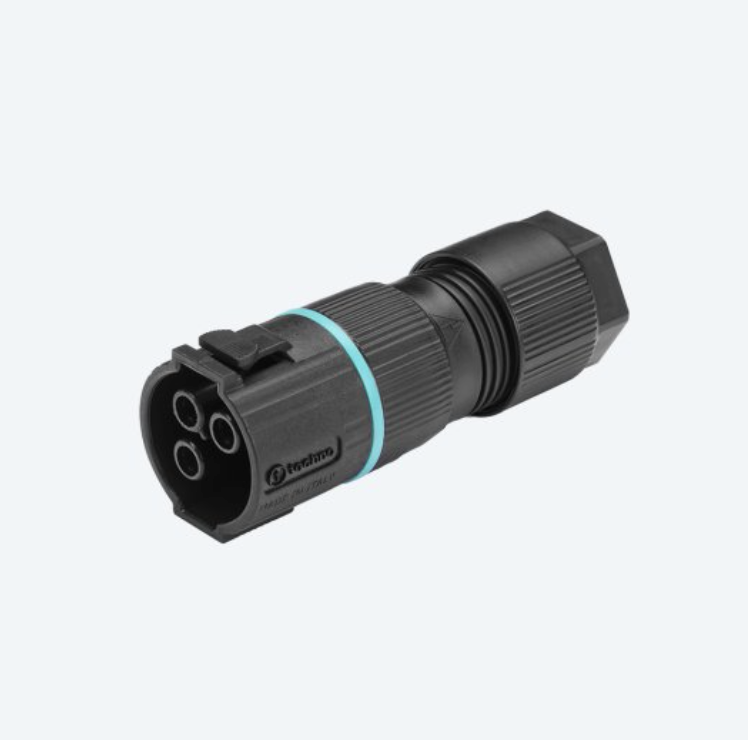

Mini cable Connector 3p - IP 68 ( plug & socket )

Brand/Make : Techno - Italy
Category : WIRING ACCESORIES
Rs. 8,800.00
-
+
Add to Cart
3 more available
Type of installation
Plug and Socket connector

part no
THB.389.A3EU - plug
THB.389.B3EU - socket

No. connected cables
1
Circuit wiring diagram
Power/Signal
Current rating (AC/DC)
25A
Voltage rating (AC/DC)
630V AC
Impulse withstand voltage
4kV
No. poles
3
Marking
1-3-4(E)
Terminations
Screw
Terminations Thread/Tightening torque
M3 - 0.8 Nm
CONNECTION DATA
Multi-stranded conductor cross-section without ferrule MIN (mm²)
0.50
Multi-stranded conductor cross-section without ferrule MAX (mm²)
2.50
*Cable sections up to 4 mm2 accepted according to indicated electrical and technical parameters
Solid conductor cross-section MIN (mm²)
0.50
Solid conductor cross-section MAX (mm²)
2.50
Conductor stripping length (mm)
6.00
Cable sheath stripping length (mm)
25.00
Reccomended types of cable
H05xxx/H07xxx
Cable diameter MIN (mm)
7.00
Cable diameter MAX (mm)
13.00
Tightening torque of nut-cable gland
2.5 Nm
