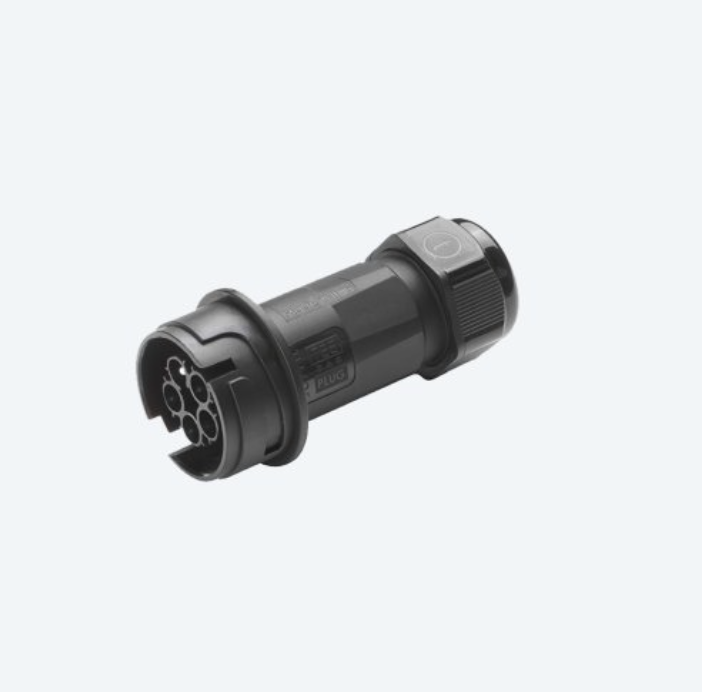

2.5sqmm 5P plug & socket - IP68 (THB 405.A5EU +THB 405.B5EU )

Brand/Make : Techno - Italy
Category : WIRING ACCESORIES
Rs. 11,600.00
-
+
Add to Cart
3 more available
ELECTRICAL DATA
Connection points
1
Circuit application
Power/Signal
Rated current (AC/DC)
17.5A
Rated voltage (AC/DC)
400V AC
Impulse withstand voltage
6kV
Number of poles
5
Contact symbols
1-2-LNE
Type of contacts
Screw
*4A (1-2 Signal) - 25A (LNE Power)
Thread/Tightening Torque
M3 - 0.8 Nm
CONNECTION DATA
MIN flexible conductor cross-section without cable lug (mm²)
0.50
MAX flexible conductor cross-section without cable lug (mm²)
2.50
MIN rigid conductor cross-section (mm²)
0.50
MAX rigid conductor cross-section (mm²)
2.50
Conductor stripping length (mm)
35.00
Cable stripping length (mm)
6.00
MIN cable diameter (mm)
10.00
MAX cable diameter (mm)
4.50pm
Tightening torque of nut-cable gland
2.5 Nm
