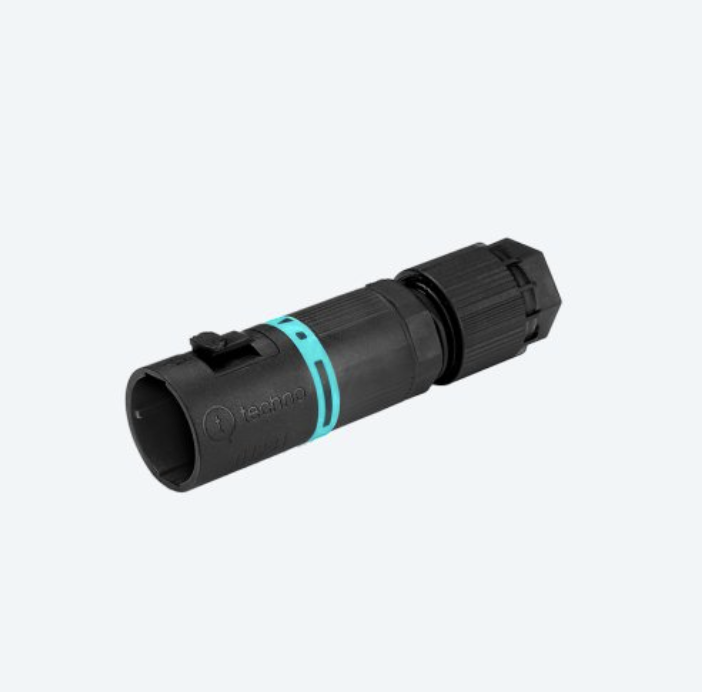

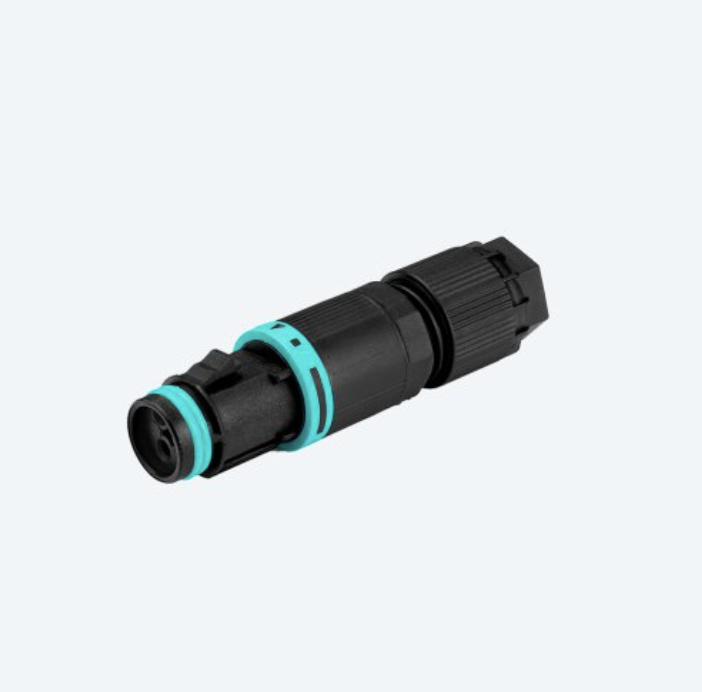

1sqmm Cable connector IP68 -(power Distributor socket & Plug )

Brand/Make : Techno - Italy
Category : WIRING ACCESORIES
Rs. 17,240.00
-
+
Add to Cart
2 more available
( THB.381.A3E +THB.381.B3E +THH.625.Y3E)
ELECTRICAL DATA
Connection points
1
Circuit application
Power/Signal
Rated current (AC/DC)
10A
Rated voltage (AC/DC)
500V AC
Supplementary-reinforced insulation (Class II)
250V
Impulse withstand voltage
4kV
Number of poles
3
Contact symbols
LNE
Type of contacts
Allen key
Thread/Tightening Torque
M2 - 0.1 Nm
CONNECTION DATA
MIN flexible conductor cross-section without cable lug (mm²)
0.25
MAX flexible conductor cross-section without cable lug (mm²)
1.00
Conductor stripping length (mm)
10.00
Cable stripping length (mm)
8.00 pm
Recommended cable type
H05xxx/H07xxx
MIN cable diameter (mm)
5.40
MAX cable diameter (mm)
7.90
Cable gland-connector tightening torque
1 Nm
Tightening torque of nut-cable gland
1.5 Nm
