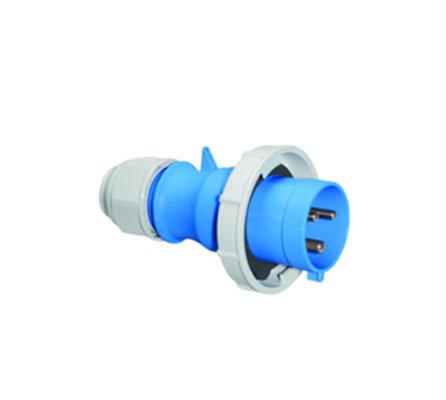

210594 -32A 3p 230V - plug
Brand/Make : Bals/Germany
Category : INDUSTRIAL PLUGS
Rs. 5,715.00
30 more available
| BALS-Prd.-Nr | 210594 |
| EAN | 4024941109949 |
| Product category | TLS plug with MULTI-GRIP cable gland |
| Current | 32A |
| Number of poles | 3p |
| Arangement of phases | 2P+PE |
| Position of earth contact | 6 h |
| Voltage | 200 - 250V~ |
| Frequency | 50/60Hz |
| Protection degree | IP67 |
| Colour code | blue RAL 5015 |
| Colour of appliance | Enclosure blue RAL 5015 Cable gland grey RAL 7035 Bayonet ring grey RAL 7035 |
| Connection design | with screw terminal |
| Maximum conductor size | 6,0 qmm |
| Cable entry | with cable gland |
| Height | 170mm |
| Width | 94mm |
| Depth | 94mm |
| Material of enclosure | Polyamide |
| Contacts | the contacts are brass nickel plated The contact carrier is made of polyamide |
