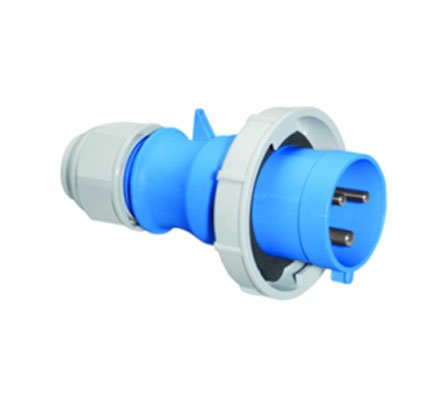

16A 3P Plug IP67
Brand/Make : Bals/Germany
Category : INDUSTRIAL PLUGS
Rs. 3,990.00
36 more available
| BALS-Prd.-Nr | 210576 |
| EAN | 4024941109765 |
| Product category | TLS plug with MULTI-GRIP cable gland |
| Current | 16A |
| Number of poles | 3p |
| Arangement of phases | 2P+PE |
| Position of earth contact | 6 h |
| Voltage | 200 - 250V~ |
| Frequency | 50/60Hz |
| Protection degree | IP67 |
| Colour code | blue RAL 5015 |
| Colour of appliance | Enclosure blue RAL 5015 Cable gland grey RAL 7035 Bayonet ring grey RAL 7035 |
| Connection design | with screw terminal |
| Maximum conductor size | 2,5 qmm |
| Cable entry | with cable gland |
| Height | 140mm |
| Width | 70mm |
| Depth | 70mm |
| Material of enclosure | Polyamide |
| Contacts | the contacts are brass nickel plated The contact carrier is made of polyamide |
