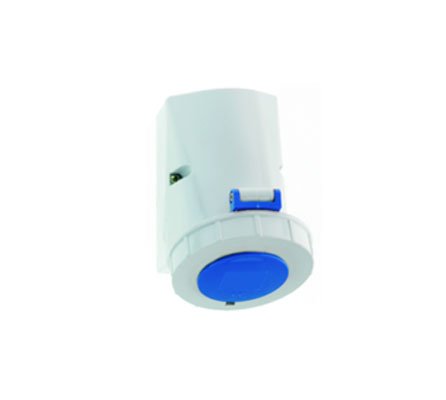

1145 - 32A 3p 230V - wall socket
Brand/Make : Bals/Germany
Category : INDUSTRIAL SOCKETS
Rs. 9,165.00
30 more available
| BALS-Prd.-Nr | 1145 |
| EAN | 4024941011457 |
| Product category | Wall mounting socket outlet |
| Current | 32A |
| Number of poles | 3p |
| Arangement of phases | 2P+PE |
| Position of earth contact | 6 h |
| Voltage | 200 - 250V~ |
| Frequency | 50/60Hz |
| Protection degree | IP67 |
| Colour code | blue RAL 5015 |
| Colour of appliance | Hinged lid blue RAL 5015 Housing bottom grey RAL 7035 Housing top grey RAL 7035 Bayonet ring grey RAL 7035 |
| Connection design | with screw terminal |
| Maximum conductor size | 10,0 qmm |
| Cable entry | 1xM25 top, 2xM25 bottom |
| Height | 161mm |
| Width | 94mm |
| Depth | 139mm |
| Dimension of enclosure | 126x83 mm (HxW) |
| Material of enclosure | Polyamide |
| Contacts | The contact carrier is made of polyamide The contacts are brass |
