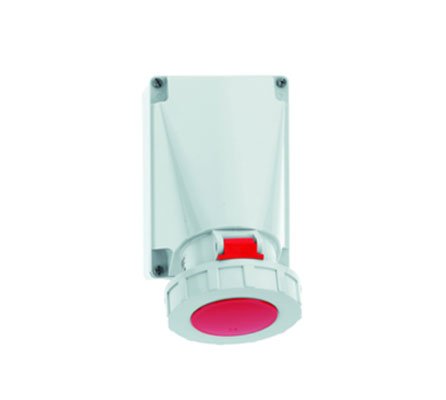

1112 - 63A 5p 400V - wall socket
Brand/Make : Bals/Germany
Category : INDUSTRIAL SOCKETS
Rs. 24,330.00
2 more available
| BALS-Prd.-Nr | 1112 |
| EAN | 4024941011129 |
| Product category | Wall mounting socket outlet |
| Current | 63A |
| Number of poles | 5p |
| Arangement of phases | 3p+N+PE |
| Position of earth contact | 6 h |
| Voltage | 200/346 - 240/415V~ |
| Frequency | 50/60Hz |
| Protection degree | IP67 |
| Colour code | red RAL 3000 |
| Colour of appliance | Hinged lid red RAL 3000 Housing bottom grey RAL 7035 Housing top grey RAL 7035 Bayonet ring grey RAL 7035 |
| Connection design | screw terminal as box terminal with Kontex-contact |
| Maximum conductor size | 25.0 qmm |
| Cable entry | top entry M40 bottom entry M32 |
| Height | 228mm |
| Width | 118mm |
| Depth | 176mm |
| Dimension of enclosure | 170x118 mm (HxW) |
| Material of enclosure | Polycarbonate |
| Contacts | the contacts are brass nickel plated The contact carrier is made of polyamide |
